The Patriot 105 loses most spec sheet comparisons before anyone picks it up. Its nozzle is listed at 0.5mm, which is double the number on brushes marketed for detail work, and the body looks agricultural next to a polished European brush. Search interest in its sets and kits has still been climbing steadily.
The reason is that the spec sheet is measuring the wrong thing. A Patriot is designed so that the part everyone breaks does not exist, and once you have spent an evening with a cracked nozzle on some other brush, that starts to sound like the most important feature on the market.
This article contains affiliate links. If you buy through them, we may earn a commission at no extra cost to you. Learn more.
Quick Answer
Is the Badger Patriot 105 the right airbrush for models?
- You prime, basecoat and shade with one brush: yes, this is exactly its job.
- You keep breaking tiny nozzles: the single piece head is the fix.
- You want American parts support: Badger stocks everything domestically.
- You do hairline freehand all evening: choose a fine nozzle brush instead.
Bottom line: the 0.5mm figure is misleading, and the lack of a fragile nozzle is the real value.
What Badger Puts in the Box

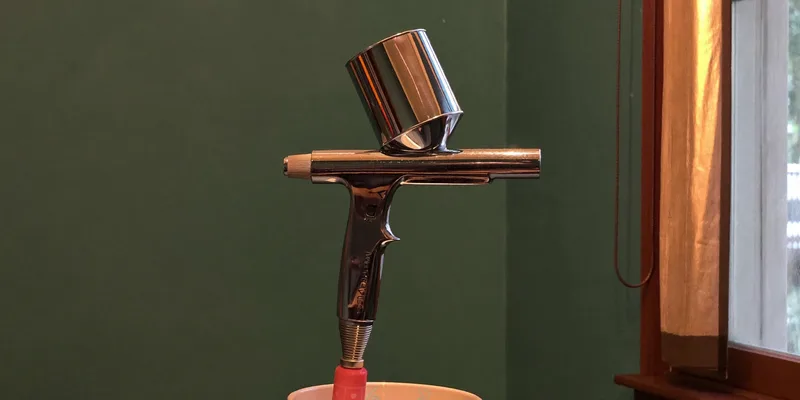

Badger lists the Patriot 105 as a gravity feed, dual action airbrush with a 0.5mm needle and nozzle, a permanently mounted cup of about a third of an ounce with a spill proof cap, and a working range that runs comfortably down into the low teens PSI. It is made in the United States and the wear parts are standard catalog items.
The cup being fixed is a deliberate trade. You cannot swap it for a thimble sized cup, and in return there is no cup thread to leak, no seal to perish there, and nothing to lose in a drawer.
The Two Angle Needle Explained
Badger grinds the Patriot needle with two different tapers instead of one. The result is that the spray widens over a longer stretch of trigger travel, so a single head covers a fine line and a broad pass without swapping parts. It is the mechanism behind Badger’s claim that one head replaces a set of conversions.
Why the 0.5mm Number Misleads Buyers
Nozzle diameter sets the maximum flow, not the minimum line. What determines your finest line is how far you can ease the trigger back with control, how well the brush atomizes at low pressure, and how thin your paint is. A Patriot at low pressure with properly thinned paint pulls a far finer line than the number implies.
Where a larger nozzle genuinely helps is everything harsh: primer, metallics with heavy pigment, and varnish. Those are the jobs that clog fine brushes, and the Patriot takes them without a fuss.
The Practical Test
If your current airbrush needs a wipe every few minutes when spraying primer, the problem is nozzle size and thinning rather than skill. Our guides to nozzle size and tip dry explain which one you are dealing with.
Where the Patriot Is the Wrong Brush
Two situations. If your painting is dominated by very fine freehand, tiny eyes, filigree and hairline camouflage, a 0.2mm class brush will do that work with less effort. And if you like changing cup sizes for tiny glaze batches, the fixed cup will annoy you every session.
There is also a comfort question. The Patriot is a solid, slightly chunky brush. Painters with small hands or wrist trouble sometimes prefer a lighter body or a pistol grip design, which is a real ergonomic difference rather than a preference to argue about.
Patriot 105 Compared With Its Rivals
The three brushes that sit in the same shopping basket, plus Badger’s own detail option. Figures are the manufacturer specifications from each product listing.
| Airbrush | Nozzle | Head design | Strongest argument |
|---|---|---|---|
| Badger Patriot 105 | 0.5mm | One piece, no separate nozzle | Nothing small to crack |
| Iwata Eclipse HP-CS | 0.35mm | Compression fit nozzle | Widest dealer network |
| Harder and Steenbeck Ultra | 0.28 or 0.45mm | Self centering, swappable | Finest trigger control |
| Badger Sotar 20/20 | 0.2mm fine | Fine set plus conversions | Detail work within Badger |
The wider brand picture is in our brands comparison, and the Badger range itself in the Badger overview.
Maintenance: What Actually Wears Out
The needle, and almost nothing else in normal use. Badger sells the standard fine needle for the 105 as a stock item, and keeping a spare in the drawer turns the classic disaster, a bent tip on a Sunday evening, into a two minute swap. The head assembly outlasts several needles.
Cleaning is a backflush between colors and a strip down at the end of a session. Because there is no fine nozzle to seat correctly, reassembly is forgiving, which is exactly why people who dislike maintenance get on with this brush.
Air, Pressure and Paint
The Patriot will run happily on any regulated hobby compressor, and it is less sensitive to a slight pulse than a fine nozzle brush is. Set pressure deliberately rather than by ear, keep a moisture trap near the brush, and thin to a milk consistency before deciding anything is wrong with the tool.
Our guide to setting PSI gives working ranges for primer, basecoat and detail passes.
Frequently Asked Questions
Can the Patriot 105 paint 28mm miniatures? Yes, comfortably, including zenithal priming, basecoats and glazes. The two angle needle narrows the spray more than the 0.5mm listing suggests. Fine freehand details are where owners typically reach for a second, finer brush.
Does the Patriot have a separate nozzle to replace? No, and that is the whole point of the design. The head is a single assembly rather than a tiny threaded nozzle you can crack or cross thread, which removes the most common way people destroy an airbrush.
What pressure should I run it at? Somewhere in the mid teens for detail and shading, higher for primer and varnish. Badger lists a working range that extends well below the pressures kit compressors default to, so a regulator you can trust matters more than raw output.
Is the fixed cup a problem for small paint batches? Only in habit. You can mix a few drops in the cup and flush it in seconds, but you cannot swap in a smaller cup as you can on some brushes. Painters who mix a lot of tiny glaze batches sometimes prefer a removable cup system.
Patriot 105 or Krome? Patriot if you want one head that does everything, Krome if you specifically want two needle sizes in one body. Both are covered in the Badger range guide, and the extra parts of the Krome are only worth it if you will genuinely swap.
Where do I get parts? Badger stocks needles, seals and head parts as ordinary catalog items in the United States, so delivery is measured in days rather than weeks. Our parts guide lists what to keep spare.
The Bottom Line
The Patriot 105 is the airbrush for someone who wants to paint rather than maintain. Its single piece head removes the fragile part, its two angle needle covers far more of the range than the 0.5mm figure suggests, and its parts arrive quickly because they are made and stocked domestically. Buy something finer if your work is genuinely detail led; otherwise this is a brush you can hand to a beginner and still be using in ten years. Read next: the full Badger range, or choosing an airbrush for miniatures if you are still deciding on a tier.
